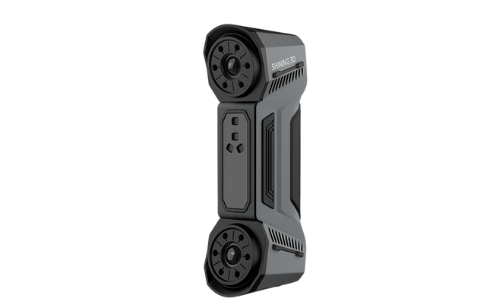

Freescan Combo – Key Features

---

• Dual Scanning Technologies: The Freescan Combo series integrates both laser and structured light scanning, allowing users to choose the best technology for their specific scanning needs. This dual capability offers versatility for capturing fine details and large objects with high efficiency.
• High Precision: Achieves an accuracy of up to 0.02 mm, ensuring that every scan is detailed and reliable. This level of precision is critical for industries that require exact measurements and high-fidelity models.
• Multi-Mode Scanning: Supports multiple scanning modes, including handheld rapid scanning, handheld fine scanning, and fixed scanning. This adaptability allows professionals to tackle various scanning scenarios and object sizes.
• Portable and Lightweight: Designed with portability in mind, the Freescan Combo scanners are lightweight and ergonomic, making them easy to use in different environments and locations.
• User-Friendly Software: Comes with intuitive software that streamlines the scanning process and integrates seamlessly with CAD and other digital tools. The software enhances productivity by simplifying data processing and output.

---

Freescan Combo – Specifications

Feature	Specification
High-speed Scanning	50 or 26 laser lines
Detailed Scan	7 laser lines
Deep Pockets	1 single line
No Markers Scan	Infrared mode
Accuracy	Up to 0.02 mm
Max. FOV	520 × 510 mm / 600 × 600 mm
Volumetric Accuracy	0.02 + 0.033 mm/m
Point Distance	0.05 ~ 10 mm / 0.1 ~ 3 mm
Scan Speed	Up to 3,600,000 points/s
Weight	620g
Certifications	CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
Accuracy Certification	VDI/VDE 2634 Part 3 (ISO 17025 certified lab)

Freescan Combo – Benefits

• Unmatched Versatility: The combination of laser and structured light scanning technologies provides a flexible solution for diverse applications.
• High Precision: Offers detailed and accurate 3D scans, essential for capturing complex geometries and intricate details.
• Ease of Use: The ergonomic design and intuitive software make the scanner accessible to users of all experience levels.
• Consistent Performance: Delivers reliable scanning results even in challenging environments, thanks to its advanced technology and robust construction.
• Enhanced Efficiency: Fast scanning speeds and high resolution improve efficiency and productivity, reducing the time and effort needed for data capture and processing.

Freescan Combo – Applications

---

The Freescan Combo series is ideal for a wide range of applications, including:

• Reverse Engineering: Capturing existing parts for redesign or reproduction with high accuracy.
• Quality Inspection: Ensuring that manufactured parts meet strict quality standards and specifications.
• Product Design: Developing detailed models for prototyping, testing, and iteration.
• Cultural Heritage Preservation: Creating digital replicas of artifacts and historical objects for preservation and study.

Why Choose Freescan Combo Series?

---

Choosing the Freescan Combo series means investing in a flexible, high-precision 3D scanning solution that meets the diverse needs of professionals across various industries. With its advanced features and user-friendly operation, the Freescan Combo series is the preferred choice for those seeking efficient and reliable 3D data capture.
